Manufacturing Process

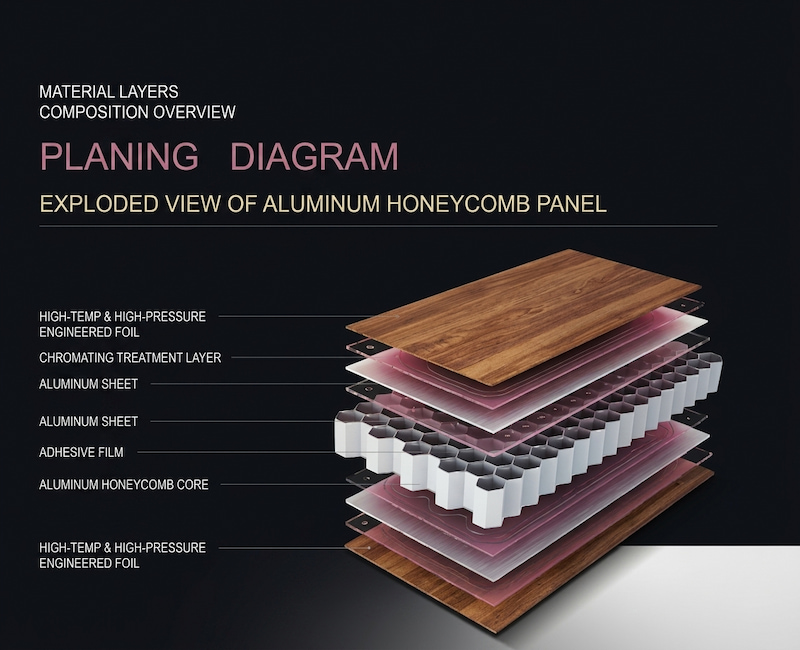

Multi-Layer Honeycomb Core Fusion

Aviation hexagonal aluminum honeycomb cores are thermally bonded with high-grade aluminum skins. We offer 18mm double-layer, 4-layer, and heavy-duty 8-layer aluminum skin configurations to deliver up to 150 MPa bending strength and high impact resistance.

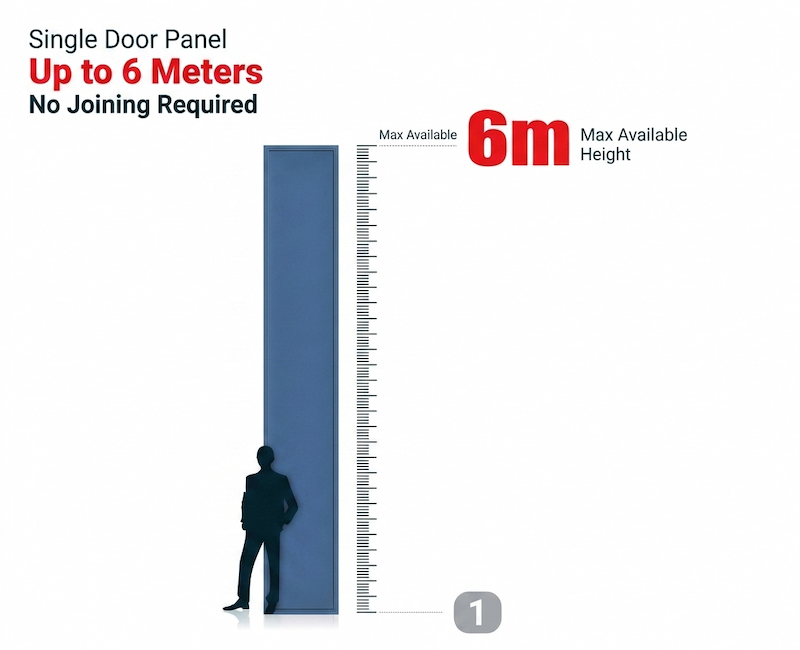

Large-Format Monolithic Sizing

Our continuous automated roll-forming line supports monolithic single door panels up to 6 meters in height without splicing, guaranteeing perfect surface flatness, structural rigidity, and zero joint lines.

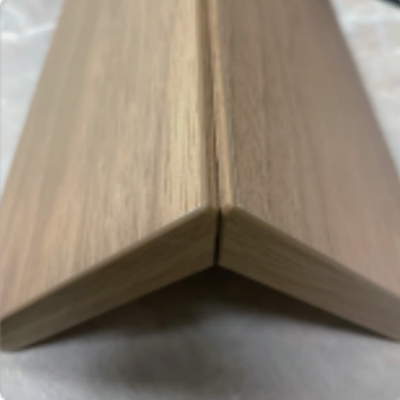

Begonia Miter Corner

Seamless miter corner connection for delicate, smooth edges.

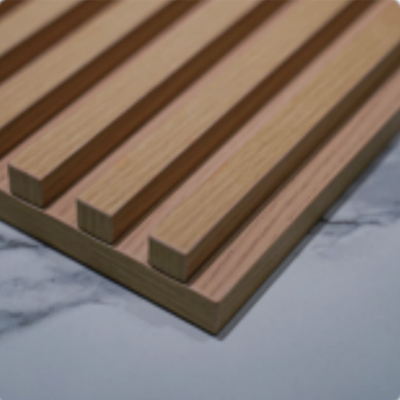

Fluted Grille Craft

Uniform color-matched vertical flutes for 3D architectural depth.

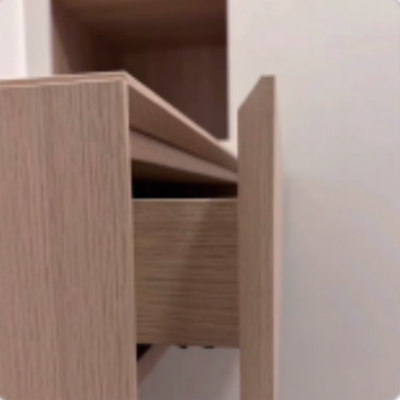

45° Bevel Cut Edge

Ergonomic handleless door design with minimalist modern lines.

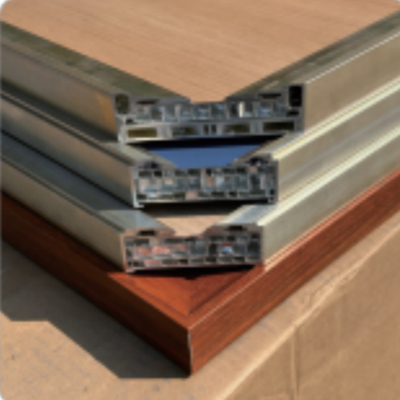

Skeleton Line Structure

Reinforced structural profile enhancing panel flatness and rigidity.

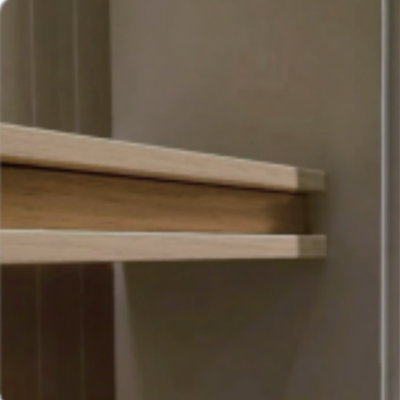

Sandwich Honeycomb

Multi-layer bonding ensuring lightweight, non-deforming strength.

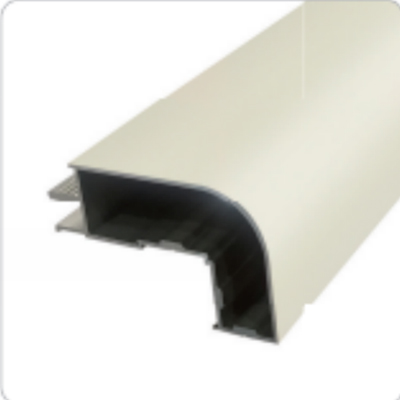

Integrated Arc Edge

Smooth seamless curved molding for soft, elegant transitions.

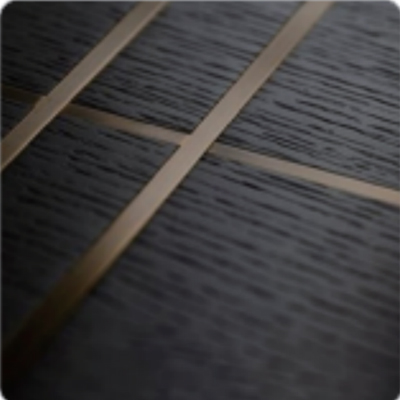

Precision Inlay Profile

Flush metallic decorative inlay accents for elevated luxury feel.

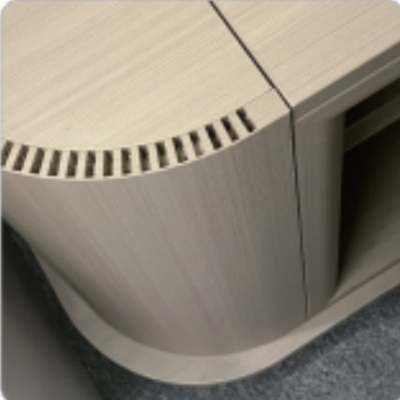

Curved Arc Corner

Soft rounded exterior corner design preventing accidental collision.

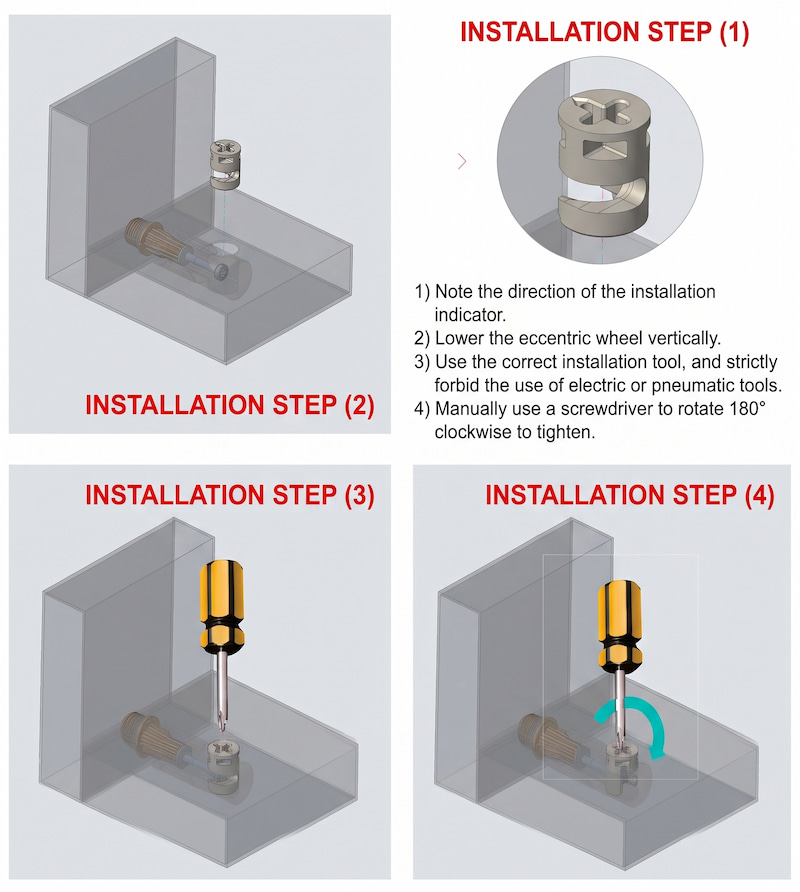

3-in-1 Cam Lock Machining Protocol

Pre-drilled Φ10mm holes maintain a standard 32mm (±0.5mm) edge-to-center distance.

• Eccentric wheels are vertically aligned with indicator markings.
• Strictly tightened with a manual screwdriver rotated 180° to the right.
• Electric/pneumatic power tools are strictly prohibited during cam lock locking to prevent torque overshooting and protect honeycomb internal hole walls.

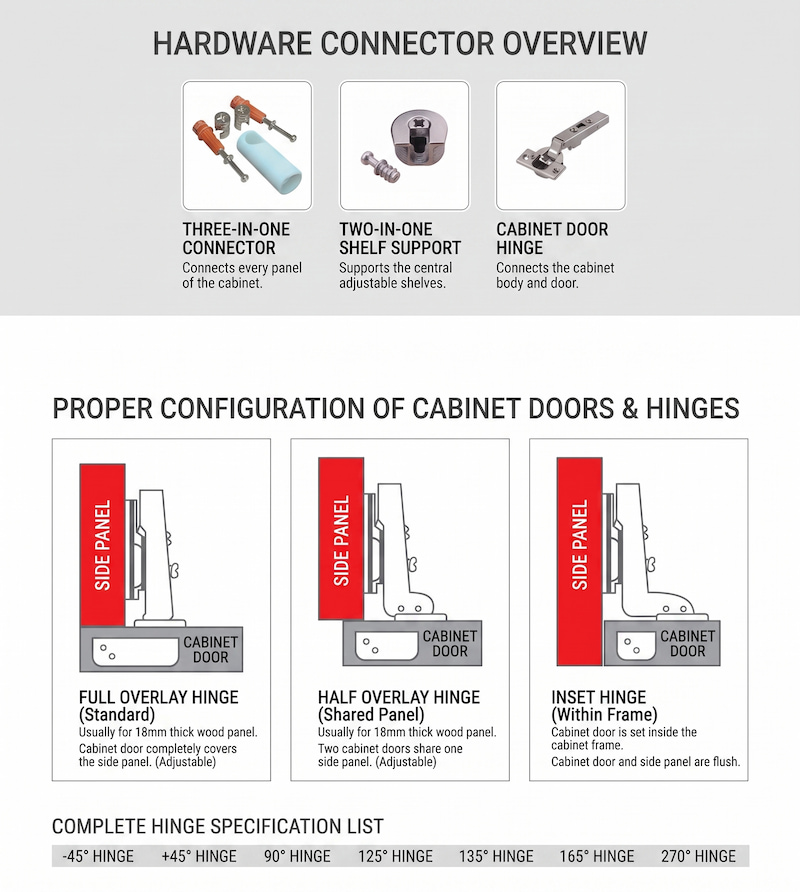

Precision Hinge & Connector Setup

Pre-machined mounting slots accommodate diverse architectural door and cabinet conditions:

• Full Overlay (Straight Arm): Door completely covers the 18mm side panel.
• Half Overlay (Middle Bend): Dual doors share a single central divider panel.
• Inset (Large Bend): Concealed flush-fit door leaf aligned inside the cabinet body.
• Full spectrum of hinge angle specs: -45°, +45°, 90°, 125°, 135°, 165°, 270°.

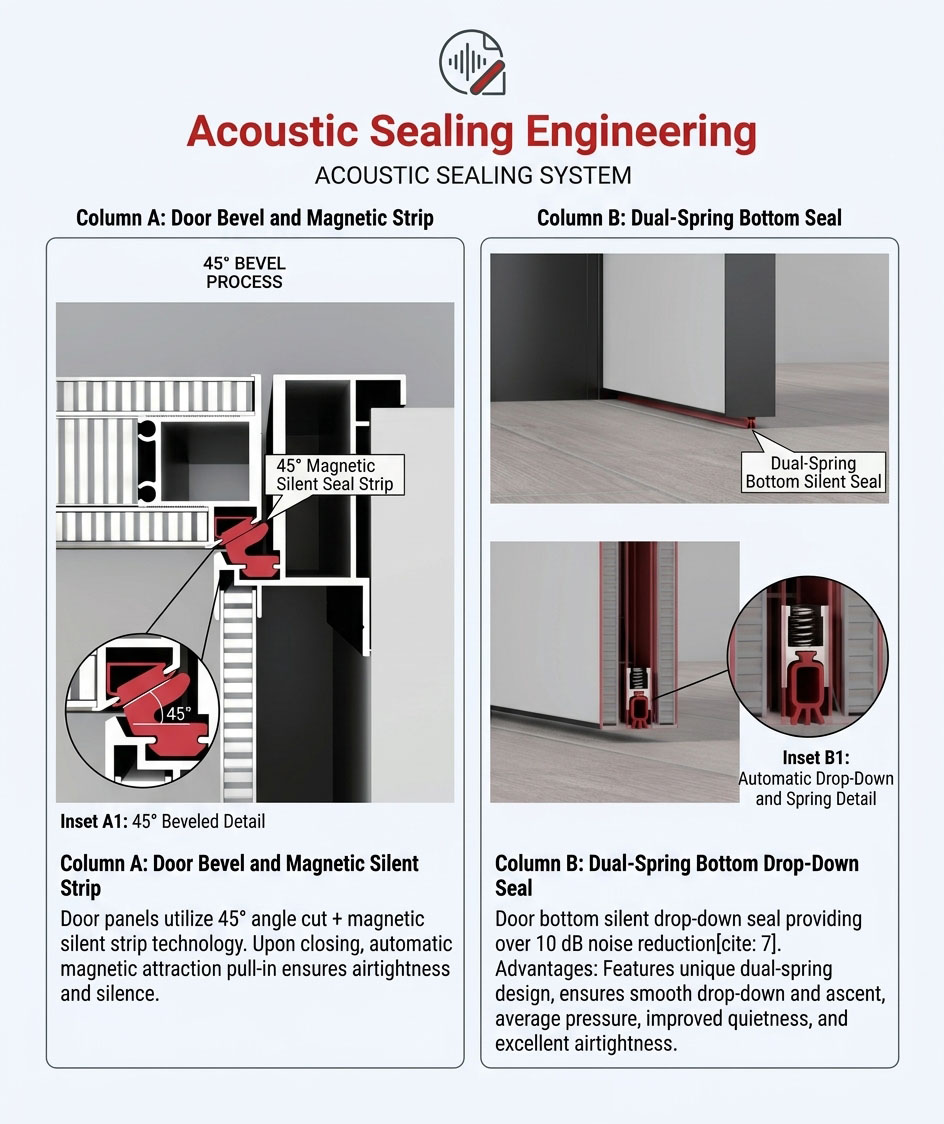

Acoustic Sealing Engineering

Door leaves are beveled at 45° with magnetic silent strips for automatic hermetic pull-in, paired with dual-spring automatic bottom drop-down seals providing over 10 dB noise reduction.

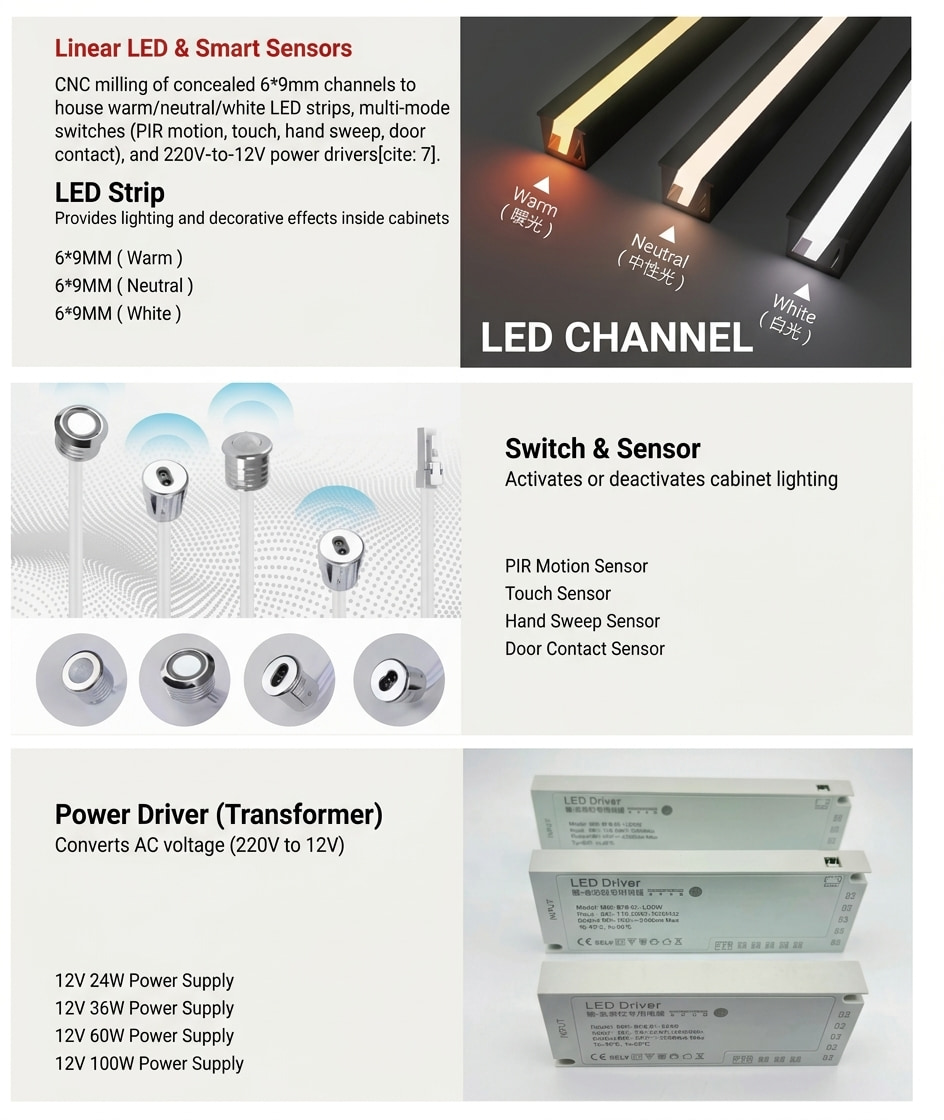

Linear LED & Smart Sensors

CNC milling of concealed 6*9mm channels to house warm/neutral/white LED strips, multi-mode switches (PIR motion, touch, hand sweep, door contact), and 220V-to-12V power drivers.

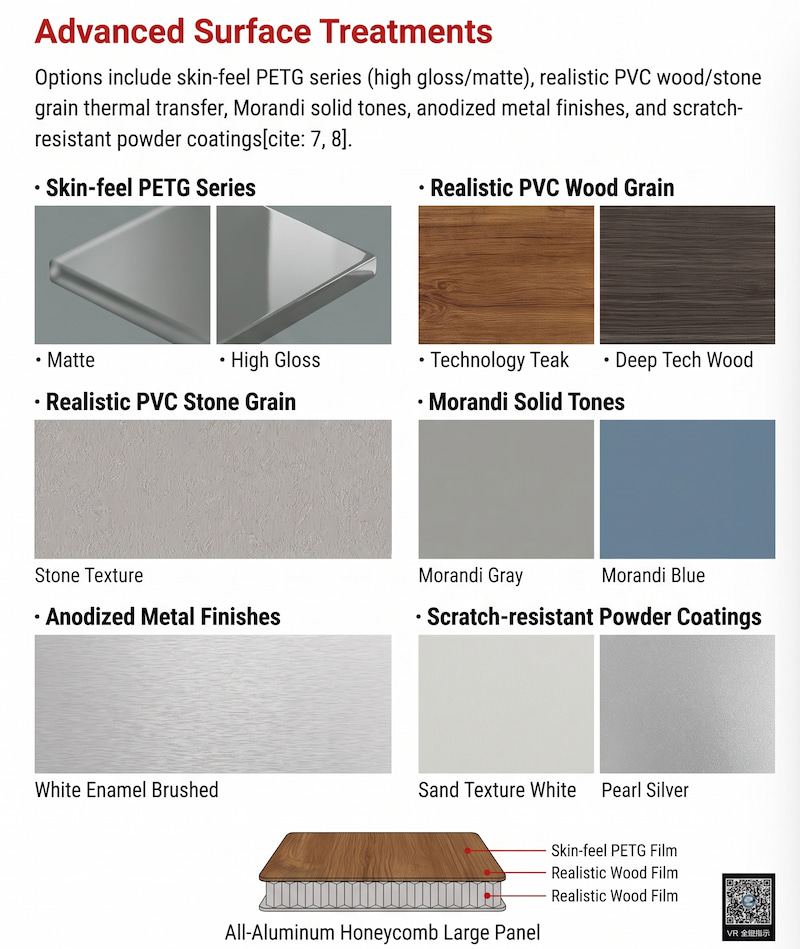

Advanced Surface Treatments

Options include skin-feel PETG series (high gloss/matte), realistic PVC wood/stone grain thermal transfer, Morandi solid tones, anodized metal finishes, and scratch-resistant powder coatings.
